Description

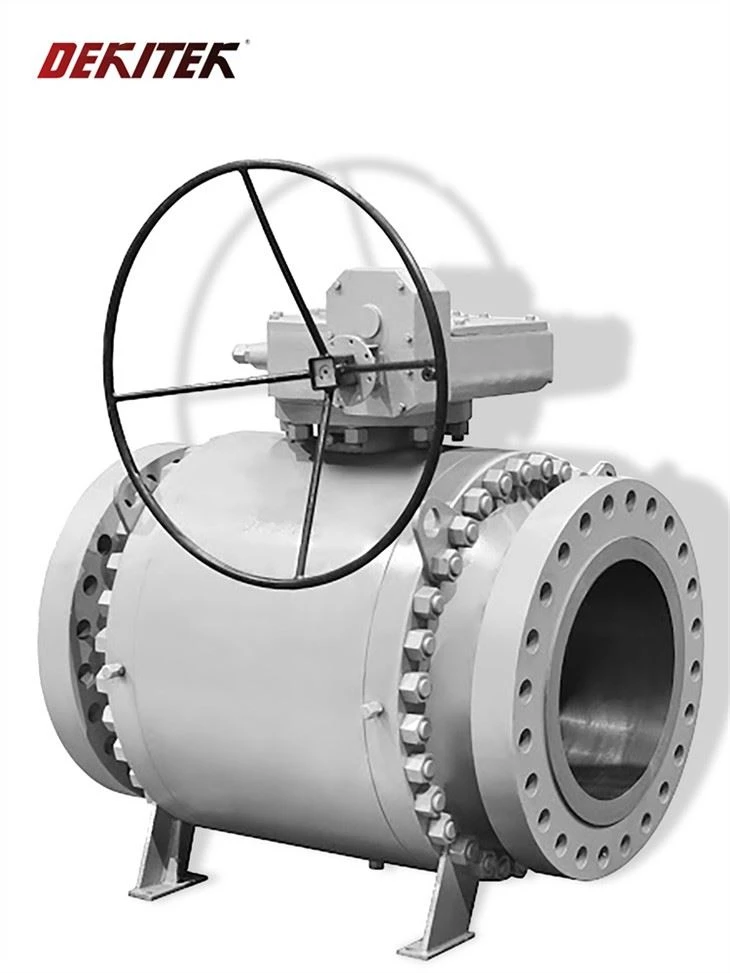

This Trunnion Mounted Soft Seated Ball Valve is a valve used to stop the flow of medium in the pipeline, and there is a circular or spherical disk in its center, which can be rotated to start or stop the flow of fluid in the application. It is made of high-quality metal materials, with good strength, small seat deformation and stable sealing performance in use. At the same time, it is most commonly used in applications requiring medium and low pressure valves, and is very suitable for liquids and gases.
Features
This Trunnion Mounted Soft Seated Ball Valve is made of high-quality metal, which is durable and will not be easily worn, so it is an ideal valve in the chemical and food industry. At the same time, it has low flow resistance, is easy to close and open, and has maximum stability and durability. In addition, it is widely used in mechanical, industrial and other applications, with anti-static devices, which can ensure flexible use.
Details
Material: WCB, WC6, WC9, CF8, CF8M, CF3, CF3M, LCC, LCB, LC1, LC2, LC3, etc.
Size Range: 2”- 60”
Pressure Rating: ASME CL 150, 300, 600, 900, 1500, 2500
Temperature Range: -29°C~600°C
Standards
Design and Manufacture: API6D/ASME B16.34/BS5351
Face to Face Dimensions: API6D/ASME B16.10
Flange End Dimensions: ASME B16.5/ASME B16.47
Butt Welded Dimensions: ASME B16.25
Pressure Test: API 598/API6D
Our service
This Trunnion Mounted Soft Seated Ball Valve has been tested by a number of tests, and the technical parameters are completely up to standard and certified by the industry. Our excellent corporate culture has brought us a lot of benefits and good social phenomena. Our company always upholds the independent innovation, sincere and united enterprise work in operation.
