Description

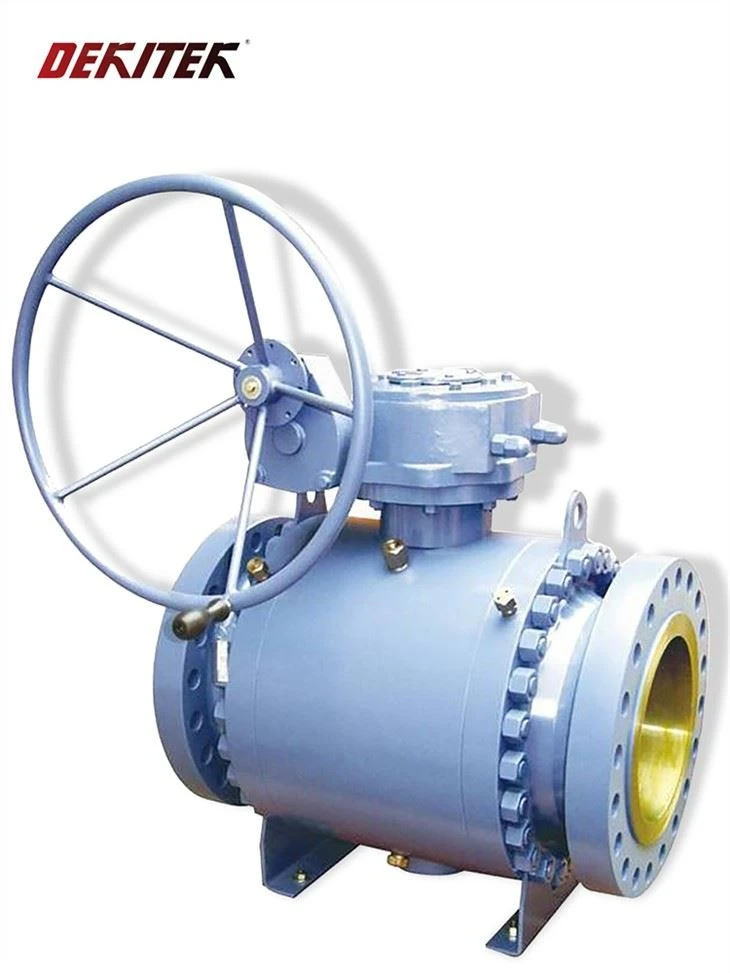

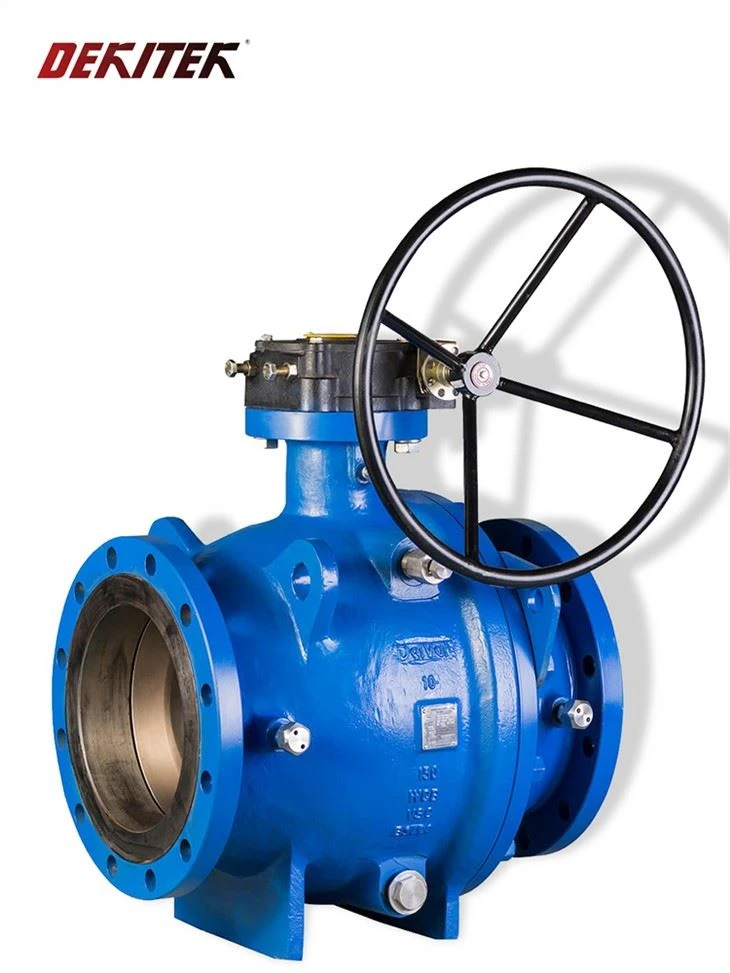

This Trunnion Mounted Metal Seated Ball Valve is an important equipment for regulating the flow of steam, gas or oil in the pipeline. Its center has a spherical disk design, which adopts a quarter circle design, and the ball can rotate 90 degrees on its axis to prevent or allow fluid flow. In addition, it is made of high-quality metal materials, meeting strict emission requirements, and providing long life under abrasive and corrosive conditions, providing solutions for high-cycle applications.
Features
This Trunnion Mounted Metal Seated Ball Valve can achieve stable flow control capability, and can also be used in high-pressure applications and large pipelines to easily control the flow of liquid and gas. At the same time, it also serves special applications to meet specific customer requirements and is suitable for harsh working environments. In addition, it has low operating torque, so its sealing surface can be protected when it is in the open and closed positions.
Details
Material: WCB, WC6, WC9, CF8, CF8M, CF3, CF3M, LCC, LCB, LC1, LC2, LC3, etc.
Size Range: 2”- 60”
Pressure Rating: ASME CL 150, 300, 600, 900, 1500, 2500
Temperature Range: -29°C~600°C
Standards
Design and Manufacture: API6D/ASME B16.34/BS5351
Face to Face Dimensions: API6D/ASME B16.10
Flange End Dimensions: ASME B16.5/ASME B16.47
Butt Welded Dimensions: ASME B16.25
Pressure Test: API 598/API6D
Our service
We take 'innovative technology, excellent quality, sincere cooperation' as the driving force of the company's development, and we can provide customers with competitive and cost-effective Trunnion Mounted Metal Seated Ball Valve. With leading technology and R&D capabilities, the company provides customers with high-quality products and solutions. We not only recruit and recruit talents extensively, but also cultivate internal talents. The core values of our company are: the gene of innovation and change is the core driving force of Tomson Beijian's continuous growth; We always insist that we will never find the new continent with the old map. If we care too much about the present, there will be no future. Thinking is a problem. Only action can have the answer.
