In the constant interaction with individuals, we frequently optimize the humanized design, function as well as overall design of our Cast Steel Globe Valve. Our staff members have outstanding toughness, which has actually efficiently advertised the fast as well as continual advancement of the company's economy. We develop a great ambience of valuing abilities in our firm as well as establish a working, discovering and also living atmosphere with business features. Our firm goes after the humanistic management concept of people-oriented as well as insists on the clinical principle of utilizing individuals.
Product Information

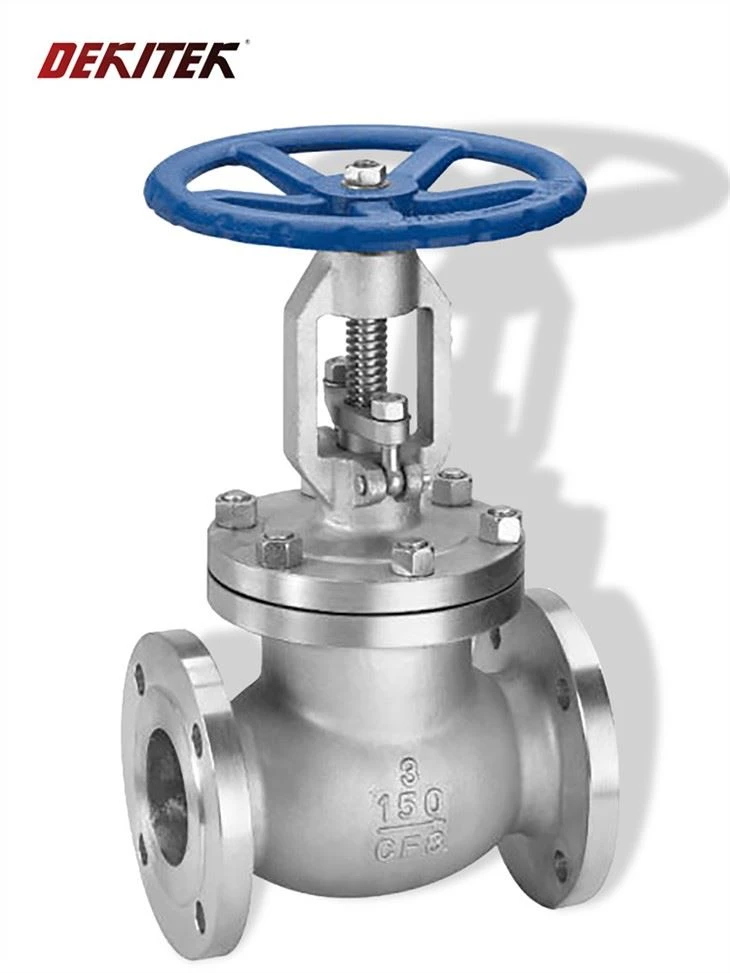

Due to the characteristics of casting itself, the manufacturing accuracy of the cast steel globe valve is high and its processing cost is low. In addition, it is integrally cast, so there is no weld stress concentration caused by welding. This valve has good sealing performance and long service life. At the same time, due to its simple structure, its maintenance is more convenient.
Compared with cast iron globe valve, the weight of the cast steel globe valve is light (about 1/3-1/4 of cast iron valve). For valves of the same specification, their quality is small and the price is low (only 1/2-1/3 of the cast iron gate or ductile iron gate), so it is more convenient to use. At the same time, because of its light weight, it can reduce the difficulty and cost of transportation and installation.
Details:
Material: WCB, WC6, WC9, LCC, LCB, LC1, LC2, LC3, etc.
Size Range: 2”-48”
Pressure Rating: ASME CL 150, 300, 600, 900, 1500, 2500
Temperature Range: -29°C~600°C
| Class | Valve Size | 2” | 2-1/2” | 3” | 4” | 6” | 8” | 10” | 12” | 14” | 16” | 18” | 20” | 24” | |
| 50mm | 65mm | 80mm | 100mm | 150mm | 200mm | 250mm | 300mm | 350mm | 400mm | 450mm | 500mm | 600mm | |||
| 150LB | Face to Face | L1: RF | 203 | 216 | 241 | 292 | 406 | 495 | 622 | 698 | 787 | 914 | 978 | 978 | 1295 |
| L2: RTJ | 216 | 229 | 254 | 305 | 419 | 508 | 635 | 711 | 800 | 927 | 991 | 991 | 1308 | ||
| L3: BW | 203 | 216 | 241 | 292 | 406 | 495 | 622 | 698 | 787 | 914 | 978 | 978 | 1295 | ||
| Handwheel Diameter (W) | 200 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | - | - | - | - | - | ||
| 300LB | Face to Face | L1: RF | 267 | 292 | 318 | 356 | 444 | 559 | 622 | 711 | 838 | 864 | 977 | 1016 | - |
| L2: RTJ | 283 | 308 | 333 | 371 | 460 | 575 | 638 | 727 | - | - | - | - | - | ||
| L3: BW | 267 | 292 | 318 | 356 | 444 | 559 | 622 | 711 | - | - | - | - | - | ||
| Handwheel Diameter (W) | 200 | 250 | 280 | 350 | 450 | 550 | 600 | 600 | - | - | - | - | - | ||
| 600LB | Face to Face | L1: RF | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | - | - |
| L2: RTJ | 295 | 333 | 359 | 435 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | - | - | ||
| L3: BW | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | - | - | ||
| Handwheel Diameter (W) | 250 | 280 | 280 | 400 | 550 | 650 | - | - | - | - | - | - | - | ||
| 900LB | Face to Face | L1: RF | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | - | - | - | - | - |
| L2: RTJ | 371 | 422 | 384 | 460 | 613 | 740 | 841 | 968 | - | - | - | - | - | ||
| L3: BW | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | - | - | - | - | - | ||
| Handwheel Diameter (W) | 350 | 350 | 400 | 450 | 650 | 700 | - | - | - | - | - | - | - | ||
| 1500LB | Face to Face | L1: RF | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | - | - | - | - | - |
| L2: RTJ | 371 | 422 | 473 | 549 | 711 | 841 | 1000 | 1146 | - | - | - | - | - | ||
| L3: BW | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | - | - | - | - | - | ||
| Handwheel Diameter (W) | 350 | 400 | 450 | 460 | 610 | 610 | - | - | - | - | - | - | - | ||
| 2500LB | Face to Face | L1: RF | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | - | - | - | - | - | - |
| L2: RTJ | 454 | 514 | 584 | 683 | 927 | 1038 | 1292 | - | - | - | - | - | - | ||
| L3: BW | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | - | - | - | - | - | - | ||
| Handwheel Diameter (W) | 400 | 450 | 500 | 600 | - | - | - | - | - | - | - | - | - | ||
Cast Steel Globe Valve is committed to working with the world's first-class ecological partners to continue to build high-end brands, scene brands and ecological brands, to build an ecosystem such as clothing, food, housing, transportation, health care, medical education, etc., to customize personalized smart lives for global users. Our employees complete the work assigned to them with high quality and efficiency, constantly optimize their working methods and frankly put forward rationalization suggestions. Scientific and technological innovation is the symbol of enterprise core competitiveness and the foundation for long-term survival of the enterprise.
