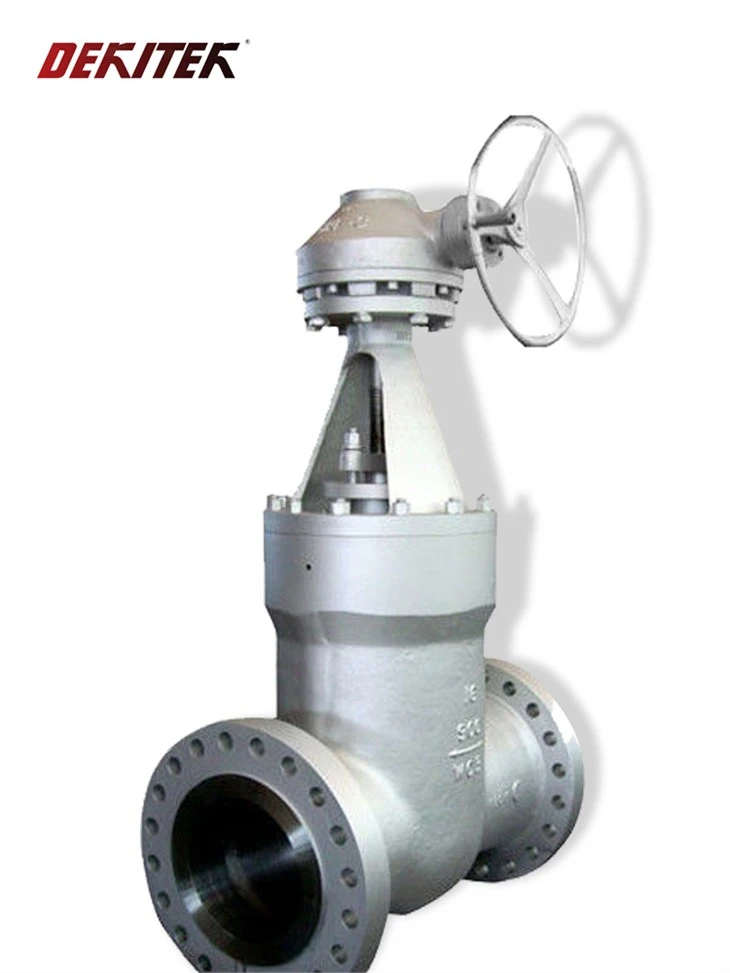

Duplex Steel Pressure Seal Gate Valve
Product Information
The duplex stainless steel pressure seal gate valve adopts the radial dynamic balance sealing system of the inclined elliptical butterfly plate, which reliably realizes the sealing zero leakage. It is a new high-tech product with real level. It is a four-eccentric two-way sealing butterfly valve, including valve body, valve plate, valve rod, and sealing ring. The valve plate is installed in the valve body, and the valve rod rotation is set in the valve body shaft hole. The valve plate and valve rod are fixedly connected by pins to realize the synchronous rotation of the valve plate and valve rod.
Features
The duplex stainless steel pressure seal gate valve has compact structure, reasonable design, good valve rigidity, smooth channel and small flow coefficient. Its sealing surface is made of stainless steel or hard alloy, with long service life. The gate valve adopts flexible graphite packing, with reliable sealing and convenient and flexible operation. Its electric device can choose the switch type for common use or the intelligent control switch type.
Standards:
Design and Manufacture: API 600, ASME B16.34
Face to Face Dimensions: ASME B16.10
Flange End Dimensions: ASME B16.5, ASME B16.47
Butt Welded Dimensions: ASME B16.25
Pressure Test: API 598
Class 150Lb API600 Gate Valves
Class 300Lb API600 Gate Valves
Class 600Lb API600 Gate Valves
| Class | Valve Size | 2'' | 2-1/2'' | 3'' | 4'' | 6'' | 8'' | 10'' | 12'' | 14'' | 16'' | 18'' | 20'' | 24'' | |
| 50mm | 65mm | 80mm | 100mm | 150mm | 200mm | 250mm | 300mm | 350mm | 400mm | 450mm | 500mm | 600mm | |||
| 150LB | Face to Face | L1: RF | 178 | 190 | 203 | 229 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
| L2: RTJ | 191 | 203 | 216 | 241 | 279 | 305 | 343 | 368 | 394 | 419 | 445 | 470 | 521 | ||
| L3: BW | 216 | 241 | 282 | 305 | 403 | 419 | 457 | 502 | 572 | 610 | 660 | 711 | 813 | ||
| Handwheel Diameter (W) | 200 | 200 | 250 | 280 | 300 | 360 | 400 | 450 | 500 | 500 | 600 | 700 | 800 | ||
| 300LB | Face to Face | L1: RF | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 |
| L2: RTJ | 232 | 257 | 298 | 321 | 419 | 435 | 473 | 518 | 778 | 854 | 930 | 1010 | 1165 | ||
| L3: BW | 216 | 241 | 283 | 305 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 | ||
| Handwheel Diameter (W) | 200 | 200 | 250 | 280 | 350 | 400 | 450 | 500 | 600 | 600 | 650 | 750 | 900 | ||
| 600LB | Face to Face | L1: RF | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 |
| L2: RTJ | 295 | 333 | 359 | 435 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | 1200 | 1407 | ||
| L3: BW | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 | ||
| Handwheel Diameter (W) | 200 | 250 | 280 | 300 | 450 | 500 | 650 | 700 | 900 | 900 | - | - | - | ||
| 900LB | Face to Face | L1: RF | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 |
| L2: RTJ | 371 | 422 | 384 | 460 | 613 | 740 | 841 | 968 | 1038 | 1140 | 1232 | 1334 | 1568 | ||
| L3: BW | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 | ||
| Handwheel Diameter (W) | 280 | 280 | 300 | 350 | 500 | 650 | 700 | 900 | 900 | 900 | - | - | - | ||
| 1500LB | Face to Face | L1: RF | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 | 1537 | 1664 | 1943 |
| L2: RTJ | 371 | 422 | 473 | 549 | 711 | 841 | 1000 | 1146 | 1276 | 1407 | 1559 | 1686 | 1932 | ||
| L3: BW | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 | 1537 | 1664 | 1943 | ||
| Handwheel Diameter (W) | 280 | 300 | 350 | 400 | 500 | 750 | 900 | - | - | - | - | - | - | ||
| 2500LB | Face to Face | L1: RF | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | - | - | - | - | - |
| L2: RTJ | 454 | 514 | 584 | 683 | 927 | 1038 | 1292 | 1445 | - | - | - | - | - | ||
| L3: BW | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | - | - | - | - | - | ||
| Handwheel Diameter (W) | 280 | 300 | 350 | 400 | 600 | 750 | 900 | - | - | - | - | - | - | ||
We insist on advanced quality management system and full monitoring of the production process, and strive to create the best quality Duplex Stainless Steel Pressure Seal Gate Valve. We always insist on doing professional things with professional people and doing professional things well with professional thinking and professional implementation. Our company in good faith, high quality product sales principle, let every customer buy at ease, with the ease.
